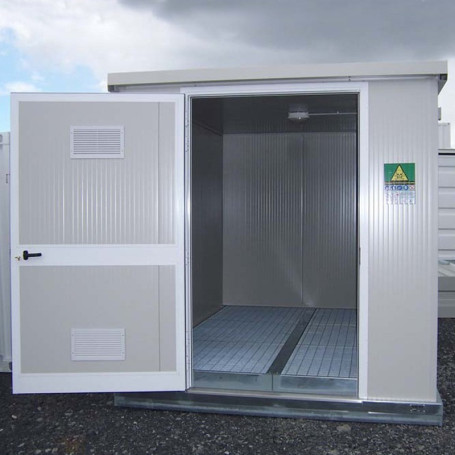

10ft Phytosanitary Container

DIMENSIONS

External height: 247 cm

Internal height: 202 cm

Width: 242 cm

STRUCTURE (FRAME)

Material: Galvanized and painted steel

Color: Light grey RAL 9002

Thickness: 1.5 mm

Base height: 160 mm, thickness 2 mm

Roof height: 150 mm

Handling: 4 lifting hooks on the roof; base accessible for forklift with 250 cm forks

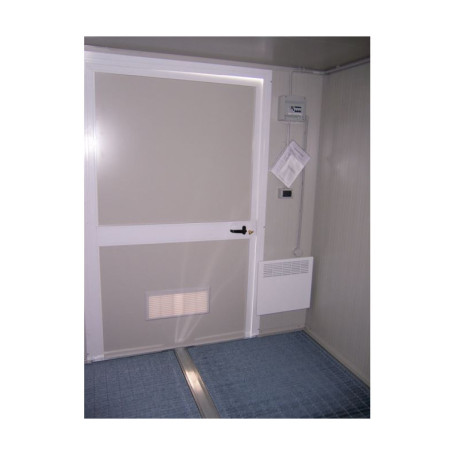

JOINERY

Material: Lacquered aluminium, white RAL 9010

Door(s): 1 fully insulated solid door, dimensions 134 × 220 cm (120 cm clear opening)

Ventilation: 2 PVC ventilation grilles, dimensions 50 × 23 cm (one on the door, one on the rear)

WALLS AND ROOF

Material: Sandwich panels

Insulation: Rigid polyurethane foam

Wall thickness: 40 mm

Roof thickness: 30 mm

Roof covering: Corrugated galvanized steel (Greek-style profile)

Wall color: Light grey RAL 9002

FLOOR

Structure: Galvanized steel

Thickness: 1.2 mm

Equipment: Drip tray / containment tray

Surface: Galvanized steel grid (mesh 35×76 mm – not compatible with pallet truck; finer mesh optional for pallet truck compatibility)

Height: 120 mm

Load capacity: 500 kg/m²

ELECTRICAL SYSTEM

Lighting: 1 switch + 1 LED ceiling light or 1 LED tube (depending on size)

Heating: 1 convection heater, 1000 W

Socket: 1 power outlet

Electrical panel: 1 panel with residual current device (RCD) and circuit breakers

Connection: 1 external connection box
